116hp HOWO 4x2 Diesel 3cbm Swing Arm Garbage Special Purpose Truck

Henan Harvest Machinery & Truck Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

116hp HOWO 4x2 Diesel 3cbm Swing Arm Garbage Special Purpose Truck

Brand Name : SINOTRUK

Model Number : ZZ1047D3414C145

Certification : CE/ ISO

Place of Origin : China

MOQ : 1 unit

Price : Negotiable

Payment Terms : T/T

Supply Ability : 500 units/month

Delivery Time : 15-25 days

Packaging Details : nude package

Drive Wheel : 4x2

Transmission Type : WLY6T46

Fuel type : Diesel

Capacity (load) : 1 - 10t

Horsepower : 116hp

Capacity : 3cbm

Tyres : 7.00R16

Overall Dimension : 6000*2150*2450mm

Contact Now

HOWO 4x2 Diesel 3cbm Skip Loader Garbage Truck Swing Arm Roll Off Garbage Truck

Garbage truck is mainly used in municipal sanitation and large factories to transport all kinds of rubbish especially for community living garbage.

The swing arm garbage truck can be used in urban erea and suburb. The container on the rear can be put down on the ground to gather garbage at a fixed location when the container gathers full. The truck lift it on the flat bed on the rear of the truck then dump the garbage in the garbage center.

We provide various types of waste collection vehicles such as side loader, refuse compactor, swing-arm garbage truck, arm-roll garbage truck, sealing dump garbage truck, compression docking refuse collector, kitchen waste truck, etc. with different capacities ranging from 3MT to 20MT.

Availability of different garbage truck

We provide various types of waste collection vehicles such as side loader, refuse compactor, swing-arm garbage truck, arm-roll garbage truck, sealing dump garbage truck, compression docking refuse collector, kitchen waste truck, etc. with different capacities ranging from 3MT to 20MT.

We are a professional manufacturer in truck area , and we can provide our customers various configuration trucks with different prices.

1. Type: compactor truck, swing arm garbage truck, skip garbage truck, self-dump garbage truck, sealed garbage truck.

2. Shape: with boat type bucket, squared type bucket, sealed type bucket, trapezoidal bucket etc.

3. Design: Dustbin can separate with truck body, so one truck with more buckets

4. Engine emission: Euro II, Euro III, Euro IV, Euro V

5. Drive wheel: 4x2, 6x4, 8x4

6. Drive type: LHD or RHD

7. Capacity: 3cbm-20cbm

Material Quality

The box of our garbage truck is made of high quality carbon steel with strengthened plate. Oil cylinders, seal rings, muli-way valves and other main parts used China top brand

Our Services

1. One Year Warranty for three key parts (Engine, Axle, Transmission).

2. Spare parts could be supplied by cost price.

3. Engineer abroad for customer service.

Specification

 Product model  swing arm garbage truck
 Product parameters  Total mass  4495kg
 Curb weight  2430kg
 Overall dimension  6000*2150*2450mm
 Chassis parameters  Chassis model  ZZ1047D3414C145
 Fuel type  Diesel
 Emission standard  Euro 2
 Engine parameters  Engine model  YUNNEI YN4102QBZL
 Manufacturer  YUNNEI
 Power(Kw)  116hp
 Transmission  Model  WLY6T46, 6 forward 1 reverse

 Main Parameters



 Cabin  2 seats & 1 sleeper with A/C
 Front axle  2.4 ton
 Rear axle  4.2 ton, drum type
 Wheelbase  3600mm
 Tires   7.00R16, 6pcs+1 spare tire
 Brake  engine exhaust brake and spring braking
 Capacity  3cbm, bootom 4mm, side 3mm

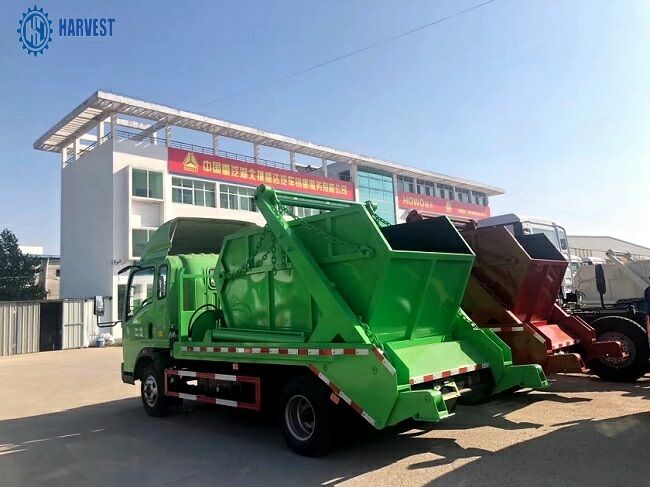

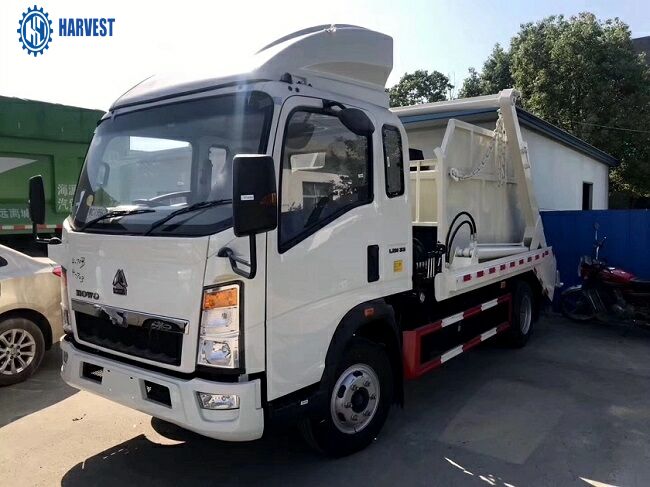

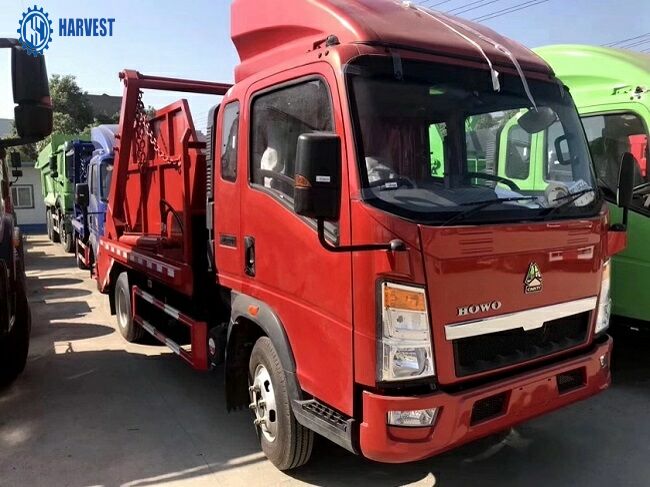

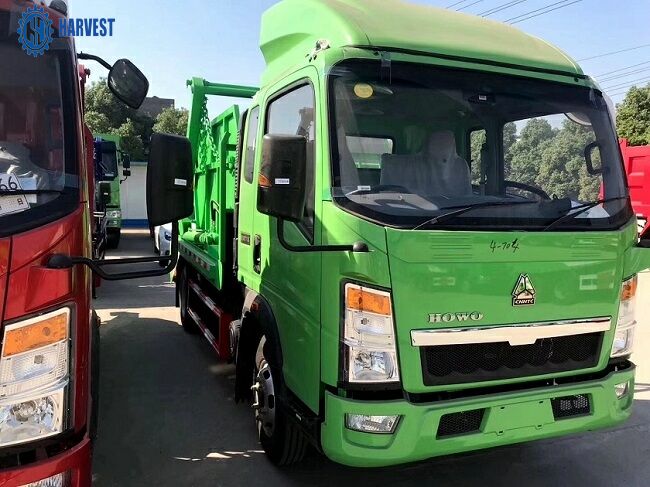

Pictures

116hp HOWO 4x2 Diesel 3cbm Swing Arm Garbage Special Purpose Truck116hp HOWO 4x2 Diesel 3cbm Swing Arm Garbage Special Purpose Truck116hp HOWO 4x2 Diesel 3cbm Swing Arm Garbage Special Purpose Truck116hp HOWO 4x2 Diesel 3cbm Swing Arm Garbage Special Purpose Truck
