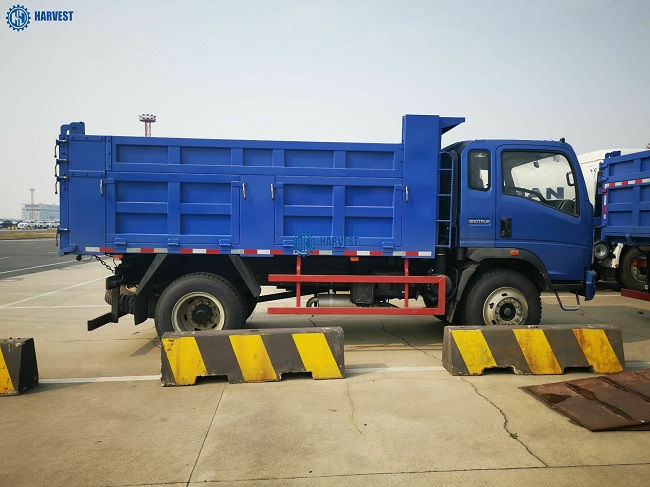

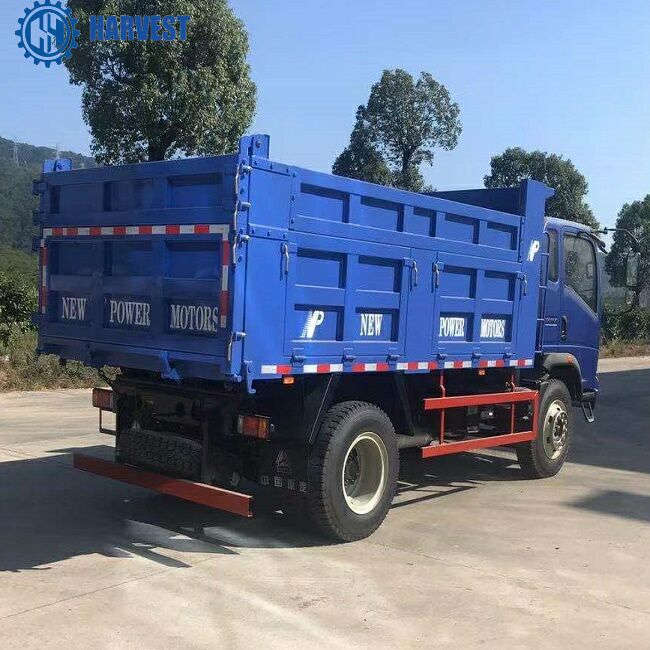

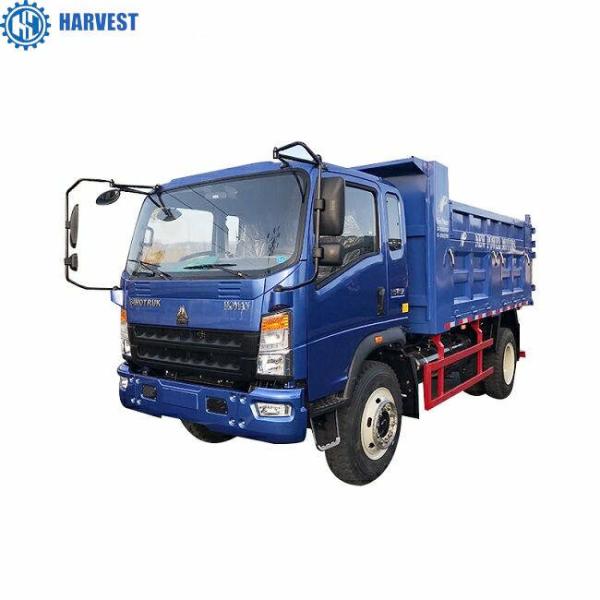

SINOTRUK HOMAN 4x2 Left Hand 10 Ton 130hp Mini Dump Truck 11cbm Bucket
Homan light dump truck is more powerful than Howo chassis, frame adopt high tensile steel
Driving type: 4x2 left hand drive
Wheel base: 3650mm
Payload: 10 ton
Cabin: 2080mm, 2 seats & 1 sleeper with A/C
Engine brand: YUCHAI
Model: YC4D130-33, 130hp Euro 3 Diesel, 4-cylinder, inline, injection , pressurize, intercoolers
Gearbox: WLY653H, 6 forwards & 1 reverse, manual control
Steering: GY95 hydraulically assisted
Tire: 9.00R20, 7pcs including 1 spare tire
Brakes service brake: dual circuit compressed air brake
Auxiliary brake: Exhaust brake, Clutch booster
Body dimension: 4200*2200*(800+400)mm
Body thickness: bottom 5mm, side 3mm.
With five doors.
Hydraulic system: middle tipping
Curb weight: 6200kg, gross weight: 13600kg
Loading capacityfront axle : 3600kg, rear axle 10000kg capacity
Features
1. The dumper truck can be classify by lifting way, one is rear dump, another is side dump.
2. Choosing domestic or famous foreign brand for the main parts of hydraulic system
3. Dump body material Q235, Q345, Q610 or wear–resisting steel for the dump body
4. Type of dump body: square shape or U-shape/ half-round-shape
5. The length of dump body is from 4m to 12m, providing related design according to customer’s requirement.
Our Service
1) Bucket shape, size, thickness, weight can be designed and produced according to your request
2) Experienced sales team recommend you suitable truck for your market
3) Fast production & delivery time after receiving payment
4) Perfect after-sales service to solve your problems or claims
Warranty
One year or 60,000 kilometers, whichever comes first from the date of shipping in Bill of Lading.
Spare parts will be offered at factory price.
Applications: It can be used for transporting sand, stone & building material in construction site.
This model can meet the requirements of severe environment in construction site and mining area.
Specification
| Chassis Model | ZZ3168E3615C156 |
| Driving Type | LHD (RHD is optional) |
| Cabin | 2080 cabin with one sleeper |
| Engine | Yuchai YC4D130-33 |
| Transmission | WLY653H / 6 forword &1 reverse |
| Steering | Power assitance |
| Front Axle | 3.6 ton |
| Rear Axle | 10 ton |
| Chassis | 255 main frame + 140 subframe |
| Tyres | 9.00R20 with 1 spare tyre |
| Fuel Tank | 150L |
| Cargo Body | 4200*2200*(800+400) mm, 11cbm, bottom 5mm side 3mm |
| Overall Dimension | 6480x2410x2860mm |
Pictures
