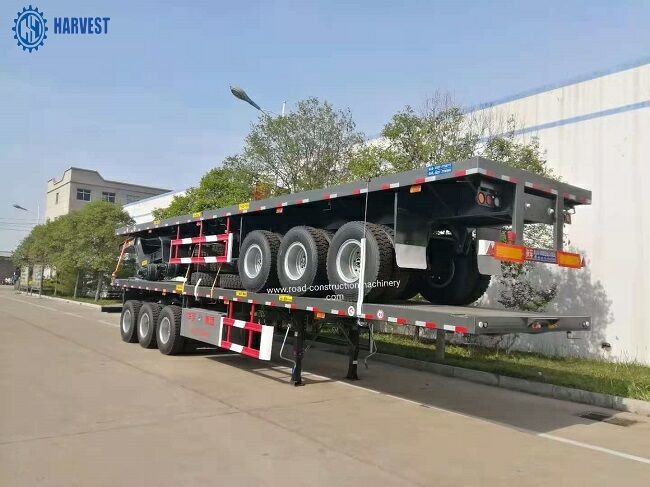

8 Axles 40ft Flatbed Trailers with Dolly 100 Ton Capacity for Mongolia Market
Our trailers are novel in shape, unique in design, reasonable in structure, sturdy and durable. They are used to transport heavy-duty goods and containers which are with twist locks, and have been unanimously recognized and highly praised by customers.

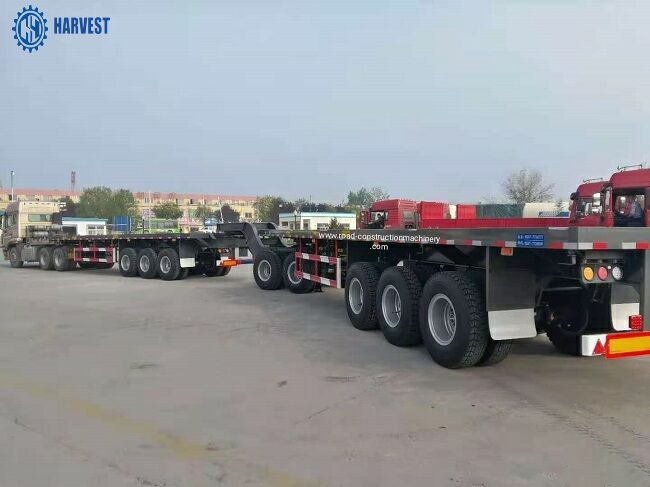

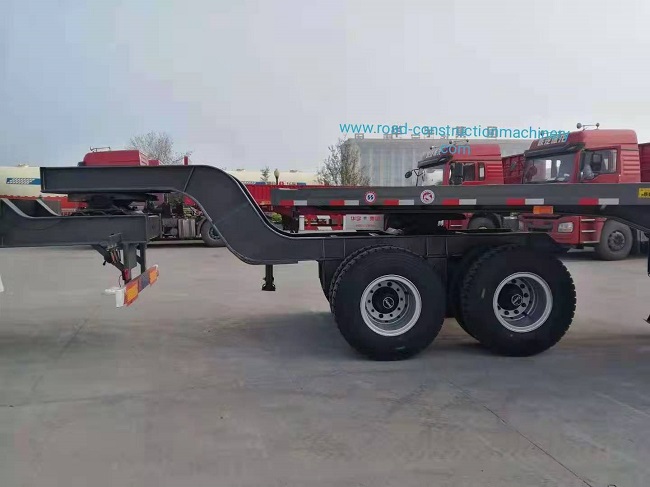

3 axles flatbed trailers with 2 axles dolly are very popular in Mongolia.
We can produce the trailers according to your requirements such as 40ft or 45ft size, 8 or 12 twist locks, FUWA, BPW, or normal axles which can help you save cost, radial tube & tubeless tyres available for your option.
Advantages
1. The main parts of the trailer are made by advanced equipment, and the main beam is welded by an automatic submerged arc welding machine. All components are sandblasted to improve paint adhesion.
2. The chassis is welded with the strong structure to improve cargo handling capacity and increase loaidng capacity.
3. We have more than 9 years' experience of exporting trailers, so we are familiar with market of different countries.
Technical Specification
| Loading capacity | 100 ton |
| Overall Size | 28100x2500x1550mm |
| Chassis (I beam) | Top flange plate | Material and thickness | Q345B 18mm |
| Bottom flange plate | Material and thickness | Q345B 20mm |
| Middle flange plate | Material | Q345B |
| Thickness | 12mm |
| Height | 520mm |
| Side beam height | Type | U steel |
| Height | 18# U steel |
| Floor | Material | Carbon steel Q235 |
| Thickness | 3mm |
| Fifth wheel | 3.5” |
| | Axle | Brand | FUWA |
| Type | 16 ton |
| Number | 4pcs |
| Rim | Type | 8.5 |
| Number | 32pcs |
| Tire | Brand | Triangle brand |
| Type | 12.00R20 tube tyres |
| Number | 32pcs |
| Suspension | Mechanical suspension |
| Spring leaf | Leaf width | 120mm |
| Leaf thickness | 16mm |
| Layer/set | 12 Layer |
| King pin | Type | Bolts type |
| Diameter | 3.5 inch |
| Brake system | Air tank | 45L air tanks |
| Brake chamber | 4 double spring brake chamber |
| ABS | Without |
| Landing gear | Brand | JOST E100 |
| Type | Two speed 24t |
| Accessories | Spare tire carrier | 2sets |
| Light | LED light |
| Voltage | 24v |
| Receptacle | 7 ways(7wire harness)and quick change type |
| Tool box | One piece,1000x500x500mm |
| Painting | Polyurethane paint&anti-rust primer & sand blasting |
| Tools for trailer | Head wrench ;spare wheel crank |
