5.5 Ton ZL50GN Front Wheel Loader SHANGCHAI Engine 3.2m3 Bucket

  • 1
  • 2
  • 3

Model Number : ZL50GN

Certification : CE/ISO9001

Place of Origin : China

MOQ : 1 unit

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1000 units per month

Delivery Time : 7-10 days

Packaging Details : nude

Engine Brand : SHANGCHAI

Power : 162kW

Dimension : 8110*3000*3508mm

Machine Weight : 17500kg

Bucket Capacity : 3.2cbm

Condition : Brand New

Contact Now

ZL50GN Front Wheel Loader SHANGCHAI 162kW Engine 3.2m3 Bucket
The ZL50GN is a heavy-duty loader designed specifically for rocky construction sites. The machine features a working device and a front and rear frame that are made of thick, high-strength boards, which are distributed reasonably to provide a strong carrying capacity. It is equipped with a large bucket that has a capacity of 3.2m³ and a SHANGCHAI 162kW engine, making it highly efficient and powerful. The bucket teeth have a tooth holder and sleeve structure, while the cutting blade and bucket edge are fitted with a protective device, ensuring excellent abrasion resistance and shock resistance.
The front frame lug and baseboard are 70mm thick, while the up and down articulated board is 30mm thick. These components make the machine superior to other similar products in terms of structural strength and carrying capacity.
With a strong breakout force of 17 tons and a traction of 17.5 tons, the machine can adapt to various tough conditions.
In terms of operation reliability, the ZL50GN is ahead of the industry due to its long wheelbase of 3300mm and long machine body of 8185mm.
The machine is also quick to act, with a total time of three devices taking only 10.3s, and the speed is 11.5 km/hour during operation.
Moreover, the ZL50GN is designed to adapt to any work site, with its centered design and small turning radius. The front and rear wheels have no speed difference, and the tire is not easily worn.
ZL50GN Wheel Loader Technical Specification

Description
Unit
Parameter value
Rated operating load
kg
5000
Bucket capacity
m³
3.2
Machine weight
kg
17500±300
Dump clearance at maximum lift
mm
3100~3780
Reach at maximum lift
mm
1100~1220
Wheel base
mm
3300
Tread
mm
2250
Max.breakout force
kN
175±5
Max.horse power
kN
160±5
Hydraulic cycle time-raise
s
≤6
Total hydraulic cycle time
s
≤10.5
Min. turning radius over tyres
mm
5925±50
Articulation angle
°
38
Gradeability
°
30
Tyre size

23.5-25-16PR
Overall machine dimension L×W×H
mm
8225×3016×3515
Model

WD10G220E23
Rated Power
kW
162
Travel Speed
Ⅰ-gear(F/R)
13/17km/h

Ⅱ-gear(F)
41km/h

ZL50GN Pictures
5.5 Ton ZL50GN Front Wheel Loader SHANGCHAI Engine 3.2m3 Bucket

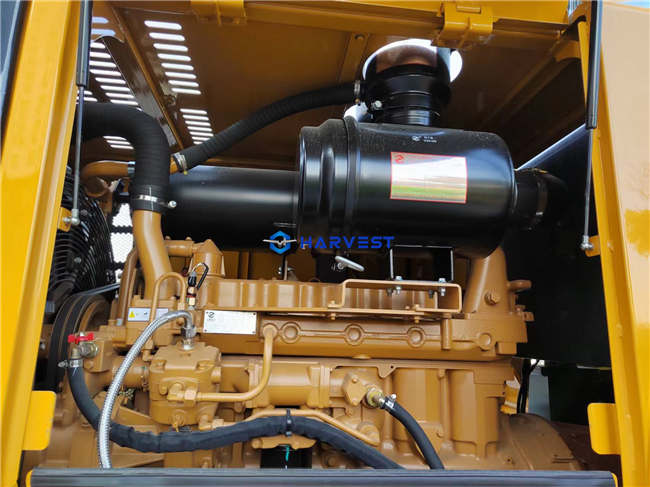

ZL50GN wheel loader adapts SHANGCHAI 162kW engine
5.5 Ton ZL50GN Front Wheel Loader SHANGCHAI Engine 3.2m3 Bucket
The fuel tank of ZL50GN wheel loader
