4WD 100hp Excavator Machine WZ30-25 Backhoe Loader With 0.3m3 Digging Bucket
WZ30-25 backhoe loader with full hydraulic joystick, work and control more easy.The luxurious cab is large, safer and more comfortable.
Large seat, non-slip rubber foot pedal, single handle control, Radio, electronically controlled driving for option .
WZ30-25 Backhoe loader with 16/70-24 big tire, steel wire tire for option, Heavy duty alxe, increase work capacity;

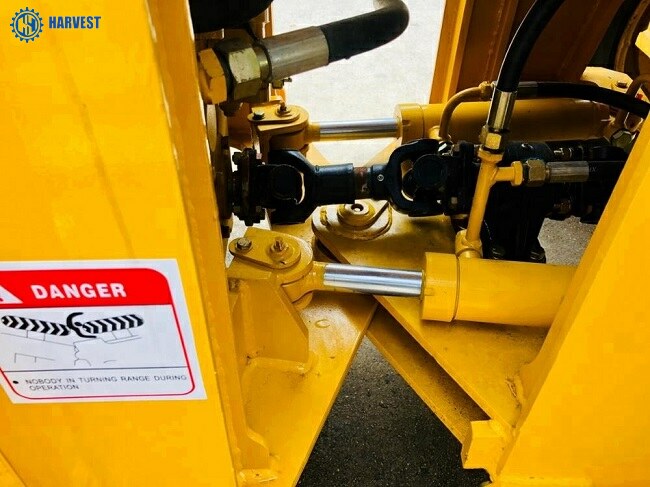

Compact articulated structure reduces cornering radius for better adaptation to different working environments.
Double fulcrum support makes the work more stable and safer;
Main Features
1) 1.3 m3 large loading bucket with 3500 mm dumping height
2) 0.3 m3 excavatoring bucket with 4018 mm digging depth
3) Optional CUMMINS 74kW diesel engine or YUCHAI 85 kW diesel engine
4) 4x4 driving axles with large tractive force
5) Cabin with air conditioner and pilot joystick control
6) Standard with quick coupler for All kinds of attachments such as fork, grapple, snow blade , hammer etc.
All kinds of attachments are optional, such as snow blade, road sweeper, hydraulic hammer, grapple, pallet fork, to meet different customer’s requirement.
Optional parts:
4 in 1 bucket/ hammers/ Snow plough/ Augers
Product Parameter
| Main Parameter | Operating weight | 7640KG |
| Dimension(L*W*H) | 5910x2268x3760mm |
| Wheel base | 2250mm |
| Mini Ground Clearance | 300mm |
| Bucket Capacity | 1.0cbm |
| Breakout Froce | 38kN |
| Rated load | 2500kg |
| Bucket Dumping Height | 2742mm |
| Bucket Digging Depth | 52mm |
| Backhoe Capacity | 0.3cbm |
| Max. Digging Depth | 4082mm |
| Max. Pulling Force | 39kN |
| Engine | Model | CUMMINS 4BT3.9-C100 |
| Rated Power | 75kw |
| Rated Speed | 2400 r/min |
| Displacement | 3.9L |
| Steering System | Model of Steering Device | BZZ5-250 |
| Steering Angle | ±36° |
| Min. Turning Radius | 5018mm |
| Pressure of the System | 12MPa |
| Axle | Manufacturer | Feicheng Axle Factory |
| Main Transmission Type | Double Reduction |
| Final Reducer | Single Stage Final Reducer |
| Transmission System | Torque Converter | YJ280 Single-stage Three Elements |
| Gearbox | Fixed shaft power transmission |
| Gears | F2/R2 |
| Max.Speed | 22km/h |
| Tyre | Model | 16/70-20 |
| Brake System | Service Brake | Air over Oil Caliper Brake;External Type; Self-regulation;Self-balance |
| Park Brake | Operation Power Implementing brake; Manual Operation Power Terminating Brake |
| Hydraulic System | Digging Power of Excavator Grab | 46.5kN |
| Digging Power of Dipper | 31kN |
| Bucket Lifting Time | 5.4s |
| Bucket Lowering Time | 3.1s |
| Bucket Discharge Time | 2.0s |

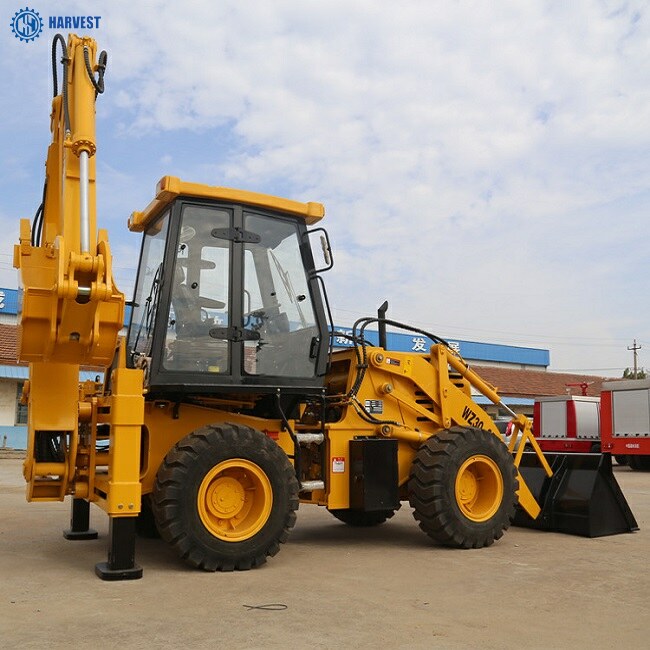

Product Picture
