LW156FV Wheel Loader power 55kw Strong Power Higher Efficiency
Product features of LW156FV wheel loader
LW156FV Wheel Loader Product Introduction
1. LW156FV is a three-stage product independently developed by , equipped with electronically controlled high-pressure common rail engines. High-quality split double-variable, four-wheel drive, full hydraulic steering, strong power, higher efficiency, and strong environmental adaptability.
2. The hydraulic oil replacement cycle is extended to 2000 hours, which greatly reduces the user's use cost.
Performance specialty
1. Adopt a long wheelbase (2300mm) design, adapt to a variety of overweight working conditions, and have high stability.
2. The unloading height of more than 3 meters meets the needs of various occasions.
3. The integral oil cylinder and pin shaft are processed by quenching and tempering process, which has high reliability.
Model characteristics
1. Yunnei 490 supercharged three-stage engine has stronger power and higher efficiency. The electronically controlled high-pressure common rail technology can really save fuel and reduce consumption.
2. Reinforced heavy-duty drive axle to meet the needs of high-strength and high-load operations.
3. A-brand engineering tires are equipped as standard, which are reliable in wear resistance, suitable for a variety of harsh working conditions and efficient in operation.
4. CAE simulation, the working device meets the heavy-duty working condition; the proprietary bucket type, inserting the material pile, saves effort; the use of wear-resistant materials improves the working life.
5. Centralized pipelines and reasonable direction; double sealing, leak-proof and more reliable.
6. Streamlined appearance, overall front-turned hood, wide vision, large space, comfortable operation and convenient maintenance.
7. It can be equipped with 3m, 3.5m height unloading working device, and a variety of machines to meet different working conditions.
LW156FV Wheel Loader Specification
| Item | Short boom | Standard boom | Long boom | Units |
| Rated load | 1200 | 1100 | 1000 | kg |
| Tipping load | 2400 | 2200 | 2000 | kg |
| Unloading height | Bucket flat height | 3470 | 3740 | 3870 | mm |
| Standard | 3000 | 3300 | 3500 | mm |
| Unloading distance | 785 | 830 | 1070 | mm |
| Rated bucket capacity | | 0.7 | | m3 |
| Overall mass | 4450 | 4550 | 4650 | kg |
| Wheel base | | 2300 | | mm |
| Tread | | 1500 | | mm |
| Maximum hoisted hinge pin height | 3730 | 3920 | 4190 | mm |
| Maximum breakout force | | 44 | | kN |
| Maximum traction | | 40 | | |
| Boom hoisting time | | 5.5 | | s |
| Three items and time | | 9 | | s |
| Minimum turning radius (tire center) | | 4620 | | mm |
| Articulation angle | | 35 | | ° |
| Climbing capacity | | 25 | | ° |
| Minimum ground clearance | | 260 | | mm |
| Tire specification | | 16/70-16 | | - |
| Overall dimensions (length*width*height) | 5890*2060*2900 | 6140*2060*2900 | 6390*2060*2900 | mm |
| Engine | Model | | YN27GBZ | | - |
| Rated power/speed | | 55/2400 | | kW/rpm |
| Driving speed | First positin (drive/back) | | 8 | | km/h |
| Second position (drive/back) | | 20.5 | | km/h |

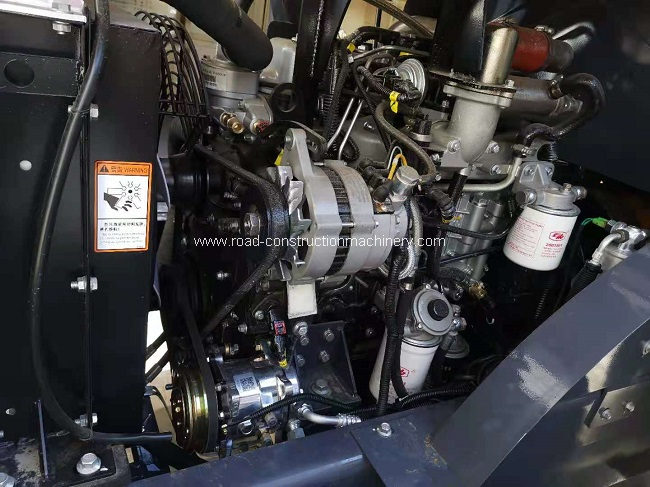

LW156FV Wheel Loader Picture
