5 Ton Payloader LW500FN With WEICHAI Engine Mechanical Operation

  • 1
  • 2
  • 3

Model Number : LW500FN

Certification : CE/ISO9001

Place of Origin : China

MOQ : 1 unit

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1000 units per month

Delivery Time : 7-10 days

Packaging Details : nude

Name : Front Wheel Loader

Bucket capacity : 3m3

Max.breakout force : 170kN

Engine : WEICHAI 162kW

Machine weight : 16900kg

Warranty of core components : 1 year

Dimension : 7910*3016*3515mm

Condition : 100% new

Contact Now

 5 Ton LW500FN WEICHAI Engine Tyres 23.5-25 Mechanical Operation Wheel Loader



Description:

·Sealed with special materials, resistant to low temperature and pressure; International brand hoses and joints have long life and no leakage.
·Comprehensive application of dust masks, the cleanliness of the system is significantly improved, the service life of each component is extended, and the reliability is increased by more than 10%.
· work hard
·Strength: Optimized hydraulic system, stronger traction and improved adaptability to working conditions.
·Small and medium wheelbase design, small turning radius, good site adaptability and strong working stability.
·Optimizing the power transmission system, the driving speed is higher, and the overall operating efficiency is increased by more than 15% compared with traditional models.
· More significant energy saving
·Energy-saving low-speed engine, patented technology, high-efficiency and large-capacity torque converter, special gearbox, with remarkable energy-saving effect.
·Using a new type of fuse box, the whole machine is controlled centrally, and the troubleshooting is convenient and quick.



Product Paramenters

 Description  Unit  Parameter value
 Rated operating load  kg  5000
 Bucket capacity  m³  2.5～4.5
 Machine weight  kg  16900
 Dump clearance at maximum lift  mm  3150～3560
 Reach at maximum lift  mm  1100～1190
 Wheel base  mm  2960
 Tread  mm  2250
 Height of hinge at maximum lift height  mm  4112
 Working height (fully lifted)  mm  5510
 Max. breakout force  kN  170
 Hydraulic cycle time-raise  s  ≤6
 Total hydraulic cycle time  s  ≤10.5
 Min. turning radius over tyres  mm  5950
 Articulation angle  °  35
 Gradeability  °  28
 Tyre size    23.5-25-16PR
 Overall machine dimension L×W×H  mm  7910×3016×3515
 Model    WD10G220E21
 Rated Power  kW  162
 Fuel Tank  L  250
 Hydraulic Tank  L  210
 Travel Speed Ⅰ-gear(F/R)  km/h  13/18
Ⅱ-gear(F/R)  km/h  40

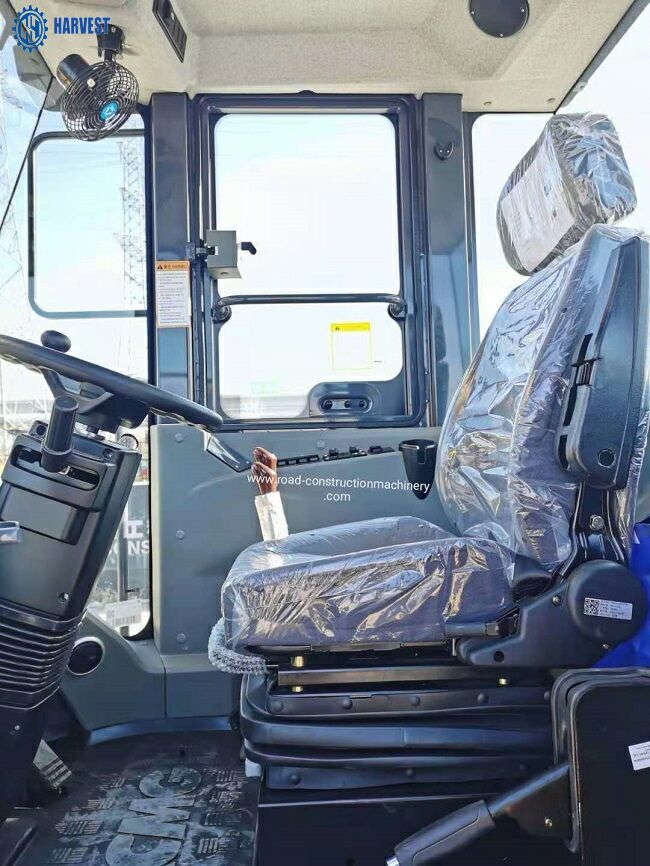

Product Show

5 Ton Payloader LW500FN With WEICHAI Engine Mechanical Operation5 Ton Payloader LW500FN With WEICHAI Engine Mechanical Operation
