Mini Skid Steer Loader With Pallet Fork, Brush Cutter, Mulcher
1. Equipped with a well-known brand engine, powerful and reliable.
2. The hydrostatic transmission is stable and the efficiency is high.
3. High strength steel is used, which is strong and reliable.
4. Integrated frame, optimized layout, compact structure.
5. The driving speed is more than 12km/h, the transition is fast and the maneuverability is good.
6. The load distribution is more reasonable, the steering in place is more flexible, the turning radius is smaller and the adaptability to the site is strong.
7. Dozens of attachments are available to meet different application requirements.
8. The international standard quick-change joints are extremely versatile and can quickly interchange different attachments.
9. The cab is ergonomically designed and all controls are within easy reach.
10. The cab can be rotated to the rear at a wide angle, the rear cover and top cover can be opened, and daily maintenance is convenient.
| Description | Unit | | Parameter value |
| Rated load | kg | | 750 |
| Tipping load | kg | | 1500 |
| Operating weight | kg | | 3140 |
| Maximum breakout force | kN | | 18 |
| Engine | Manufacturer | | Xinchai |
| Model | | 4D27G31 |
| Rated power | Hp/kw | 49.3/36.8 |
| Rated speed | rpm | 2500 |
| Cooling mode | | Water-cooling |
| Performance parameter | Operation mode | Mechanical & multi-function electronic control |
| Tire standard | | 10-16.5 |
| Maximum speed | Km/h | 14 |
| Hydraulic system | Hydraulic flow rate | L/min | 62.5 |
| Optional large flow | | |
| Hydraulic pressure | bar | 200 |
| Maximum operating height | mm | | 3878 |
| Bucket hinge pin height | mm | | 3057 |
| Cabin top height | mm | | 1960 |
| Maximum horizontal height of bucket bottom | mm | | 2851 |
| Length without bucket | mm | | 2533 |
| Length with bucket | mm | | 3310 |
| Toppling angle | ° | | 40 |
| Maximum unloading height | mm | | 2375 |
| Ground-bucket angle | ° | | 30 |
| Rotating angle of bucket at highest point | ° | | 83 |
| Unloading distance | mm | | 575 |
| Wheel base | mm | | 1027 |
| Departure angle | ° | | 25 |
What is a skid steer loader and what can it do?
A skid loader is also called a skid-type loader, a multi-purpose engineering vehicle, or a multi-purpose engineering machine. It is a wheeled special chassis equipment that uses the linear speed difference of the wheels on both sides to achieve vehicle steering. It is mainly used in places where the work site is small, the ground is uneven, and the work content changes frequently.
It is suitable for infrastructure construction, industrial applications, dock loading and unloading, urban streets, residences, barns, livestock houses, airport runways, etc. It can also be used as auxiliary equipment for large-scale engineering construction machinery. There are two ways for skid loaders to travel: wheeled and crawler.

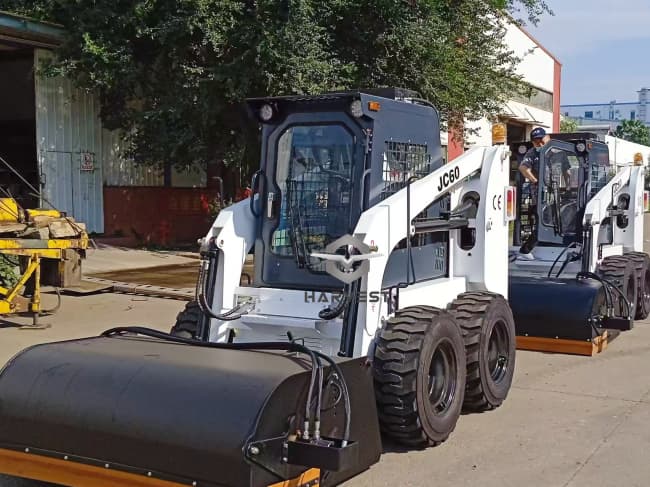

Skid Steer Loader Sweeper Attachment for Sale

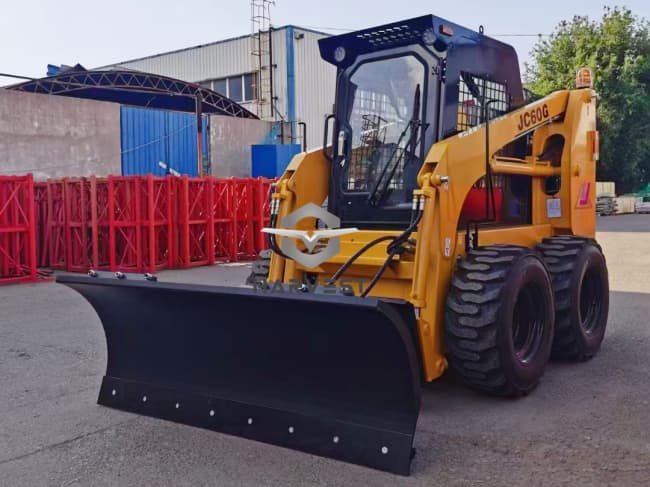

Skid Steer Loader Dozer Blade Attachment for Sale

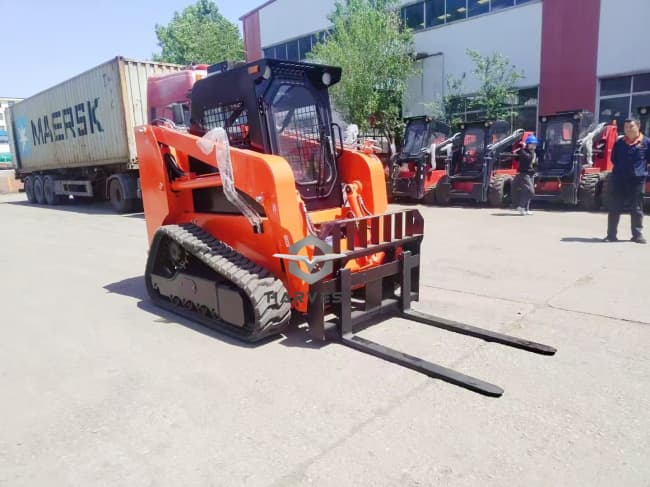

Skid Steer Loader Pallet Fork Attachment for Sale

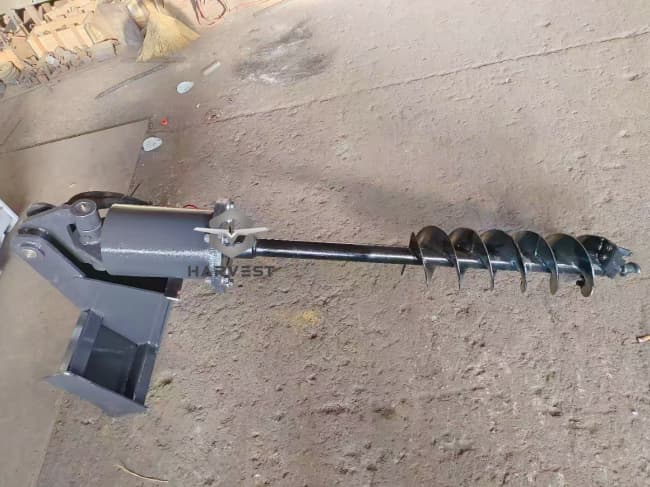

Skid Steer Loader Auger Attachment for Sale
Skid Steer Loader Auger Attachment for Sale

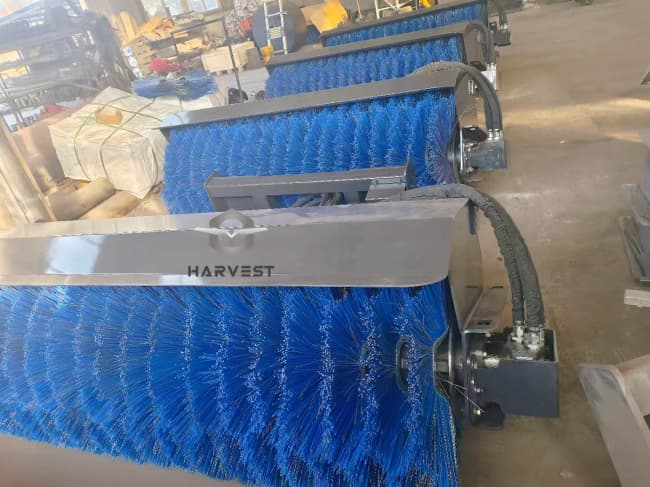

Skid Steer Loader Angle Broom Attachment for Sale
