Sinotruk 6x4 371hp 28,000 Liters 4 Compartments Oil Truck with Fuel Tanker Trailer
Description
Fuel tank truck also called oil tank truck could be equipped with fuel pump to realize pumping in and out, with fuel dispenser to filling different kinds of oil to the other equipment at anywhere.The tanker could be divided into many compartments for transporting different types of fuel, which could be loading and discharging totally separate.The material of the tanker could be carbon steel, stainless steel, aluminum alloy.
Usage and Maintenance
1, In order to prevent fire accident to block, on the exhaust pipe, silencer is damaged, pipeline leak, conducting electrostatic clip, are not allowed to damage or fracture and tapping oil vehicles parts, metal items, lest produce Mars block must be ready to.
2. If tank sedimentation tank under freezing and may not be roasted in the fire, can use hot steam melt or pulls into thaw in the greenhouse.
3. Cases of unsymmetry must make before driving force.
4. Oil vehicles driving, the rear of the electrostatic belt must take to replace damaged in a timely manner.
5,.A tanker truck operation before, should check whether the oil pipeline system, ground wire is disconnected, the exhaust pipe is damaged, found that the problem should be resolved first homework again.
6. Hit oiling car parts are not allowed to use metal, lest produce Mars, homework should be careful not to produce Mars, oil should be in accordance with the relevant provisions.
7. When you enter a loading oil tank to check, the outside of the tank must be watched .Must be in accordance with the relevantindustry operating procedures, make sure the personal property safety.
8. In winter, if there is water in the self-priming pump must put all the water, to prevent frostbite to break the pump body.
Specification
Cabin
| HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner with transverse stabilizer, with 4-point support fully floating suspension + shock absorber |
| Engine | Make: SINOTRUK Diesel 4-stroke direct injection diesel engine, Engine Model: WD615.47, Euro2, 371hp cylinder in line with water cooling, turbo-charging & intercooling Displacement: 9.726L |
| Transmission | SINOTRUK HW19710,10 forward and 2 reverse, with HW70 flange PTO Ratio: 14.28, 10.62, 7.87, 5.88 , 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assistance. |
| Front Axle | HF9(drum), 1x9000KGS steering with double T-cross section beam |
| Rear Axles | HC16(drum), 2x16000KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles Ratio: 4.42 |
| Chassis | Frame: double frame (8/8+300), With Oil Bath Filter Front suspension: 10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: 15 leaf semi-elliptic springs, bogie spring and stabilizer |
| Brake System | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tires | 12.00R24, radial tires with one spare tire. With 2 U-Pull. |
| Oil Tank | 400L+400L |
| Fuel Tank | Material: carbon steel Q235B Tank Thickness: 5mm, end plate 6mm Volume: 28000 Liters Compartments: 6, 7000L, 7000L, 7000L, 7000L 4 European standard manhole with 4 breath valve, 4 sea valve, 4 discharging valve,15m hose, 45L flow, Aluminum alloy folding handrail, ladder, fueling machine, fueling gun, flow meter, pump, bottom oil loading system, 10m tube with connection, with trailer system 2 fuel tank & exhaust on one side, petrol control system on another side Dimension: 8850x2300x1600mm |
| Dimension | 11700x2500x3350mm |
| Color | White |

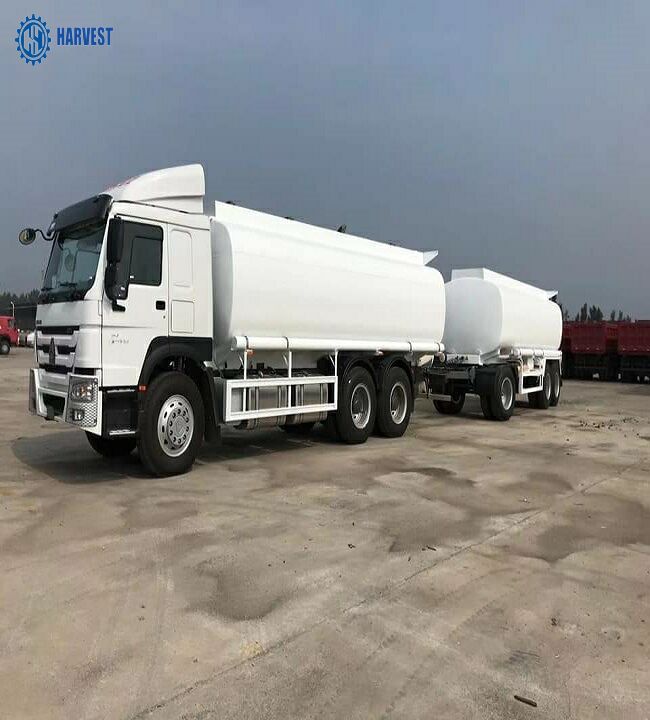

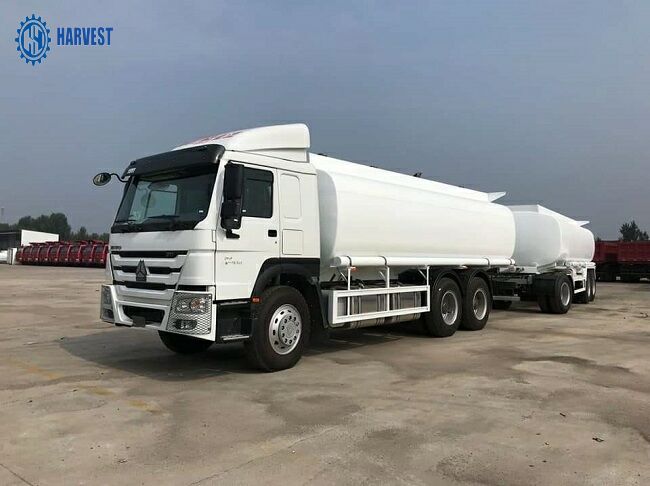

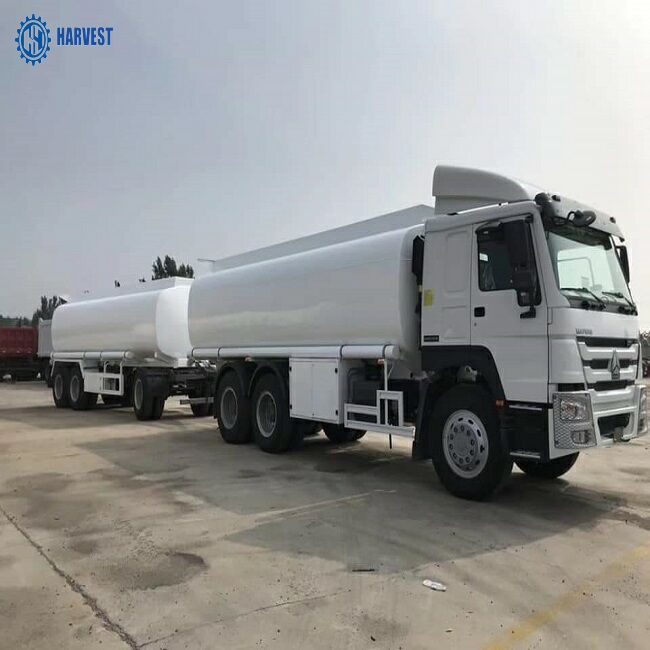

Tanker Picture
