SINOTRUK HOWO 4x4 All Wheel Drive 290hp 5000 Liters Fuel Tanker Truck with Pump
Fuel Tanker is widely used in oil industry for fuel transportation, refueling and storage, etc.
Fuel truck also called fuel bowser, fuel tank truck, fuel tanker, oil tanker, oil tank truck, petrol tank, petrol fuel tank, tanker truck, refueler truck , petroleum tanker, fuel dispenser truck, fuel dispensing truck, mobile dispenser truck, crude oil truck, crude oil tanker truck, fuel transport truck, diesel truck, mobile diesel tanker truck.
It can be divided into many compartments to transport different medium, which will make your transportation easy and safe.
Chassis: SINOTRUK 4x4 all wheel drive which is more powerful for desert or very bad rough condition road.
Our company are professional manufacturer in truck area, guarantee all goods Brand-New and China-Origined. We can provide you all series tank trucks and price.
1. Tank materials: Optional for carbon steel, stainless steel, rotational lining plastic, and FRP;
2. Tank shape: Optional for round square, oval, and round;
3. Functions: The tank can be made to be made to be separated chambers to load different oil or chemical varieties .and can be designed as as pump-in and pump-out through measurement;
4. Oil pump:Optional single counting, double counting, and tax control tanker;
5. Pump: According to the use of tankers, can choose centrifugal pumps, gear pump, copper gear pump, stainless steel pump, it has big flow,fast speed of suction and some other characteristics.
Specification
| Dimension(Lx W xH)(unloaded)(mm) | 8268×2496×3200 |
| Tanker | Capacity | 5000 liters |
| Compartments | 2 |
| Botton Valve | with |
| Approaching angle/Departure angle(°) | 15/18 |
| Overhang(front/rear) (mm) | 1500/2090 |
| Wheel base (mm) | 4300 |
| Max speed(km/h) | 102 |
| Curb weight(kg) | 8250 |
| Cabin | HW76 old face, with 1 sleeper & air conditioner |
| Engine | Model | WD615.87,water-cooled,four strokes, 6 cylinders in line with water cooling,turbocharged and intercooling, direct injection |
| Fuel type | Diesel |
| Power, max(kw/rpm) | 290hp |
| Emission | Euro 2 |
| Fuel tanker capacity(L) | 400L aluminum oil tank |
| Transmission | HW15710C, 10 speeds forward and 2 reverse |
| Brake system | Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels |
| Steering system | ZF8198 |
| Front axle | STR |
| Rear axle | ST16 |
| Tire | 12.00R20 |
| Electrical system | Battery | 2X12V/165Ah |
| | Alternator | 28V-1500kw |
| | Starter | 7.5Kw/24V |

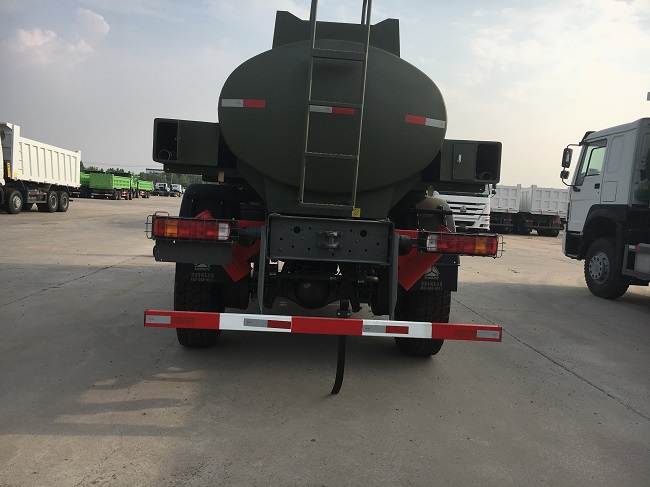

Pictures
