Sinotruk Howo 6x4 9500x2300x2300mm Cargo Truck with 12R24 Tyres for Somaliland
This Cargo truck is special design for Somaliland market.
* HOWO76 cab, single sleeper with air conditioner, all-steel forward control, 55ºhydraulically tillable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio / cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
* It is with 12R24 tyres which is more powerful than 12.00R20 in rough road.
* 2 oil tanks 800 liters capacity to offer enough fuel for your long distance transportation.
Main Parameter
Chassis Model: ZZ1257N5847W
Engine: WD615.47, 371hp, Euro II
Cabin: HW76, 2 seats & 1 sleeper, with A/C & deflector(cabin hat)
Front Axle: HF9 (drum). 1x9 ton loading capacity
Rear Axle: HC16 (drum), 2x16 ton loading capacity
Transmission: HW19710, 10 forwards & 2 reverse
Steering: ZF8118 hydraulic steering with power assistance
Tires: Radial 12.00R24, 10pcs+1 spare tire, with 2 U-Pull
Oil Tank: 400L+400L
Cargo Box: 9500x2300x2300mm, thickness bottom 4mm, side 3.5mm
FAQ
1. What is your terms of payment ?
TT by bank, 30% deposit then we will start production, after the truck get ready, we show you detailed pictures & video, then you send balance, once we received your balance, we will ship the truck for you.
2. What is your terms of delivery?
FOB China port or CIF your port
3. How long delivery time?
We will finish new production in 30 to 30 days after deposit.
Specification
| Brand | SINOTRUK |
| Driving Type | Left Hand Drive |
| Truck Model | ZZ1257N5847W |
| Dimension (Lx W x H) | 11963*2550*3850mm |
| Cargo body dimension (L x W x H) | 9500*2300*2300mm |
| Cargo body shape | Same like picture |
| Cargo body thickness(mm) | Bottom: 4mm, side: 3.5mm |
| Approaching angle/Departure angle (°) | 16/9 |
| Overhang(front/rear) (mm) | 1500/3288 |
| Wheel base (mm) | 5825+1350 |
| Max speed(km/h) | 95 |
| Curb weight(kg) | 11000 |
| Loading Weight(kg) | 30000 |
| Engine | Model | WD615.47 water-cooled, four strokes, 6 cylinders in line with water cooling, directly injection |
| Fuel type | Diesel |
| Horse Power, max(kw/rpm) | 371HP |
| Emission | EURO II |
| Fuel tanker capacity(L) | 400L+400L |
| Transmission | Model | HW19710,10 F and 2 R |
| Brake system | Service brake | Dual circuit compressed air brake |
| P arking brake | spring energy, compressed air operating on rear wheels |
| Auxiliary brake | Engine exhaust brake |
| Steering system | Model | ZF8118 hydraulic steering with power assistance |
| Front axle | HF9 |
| Rear axle | HC16 |
| Color | White |
| Tyre | 12R24 |
| Tyre quantity | 10pcs + 1 spare tire |
| Electrical system | Battery | 2X12V/165Ah |
| Alternator | 28V-1500w |
| Starter | 7.5Kw/24V |

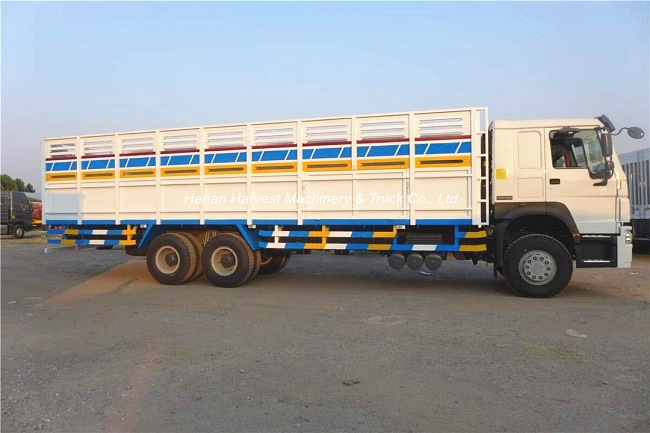

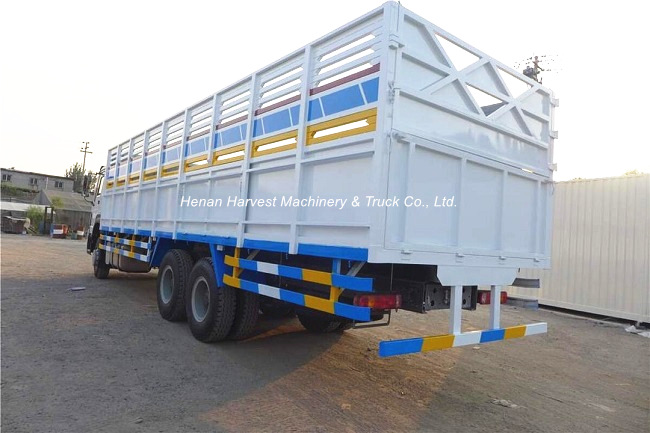

Pictures
