5 Ton Heavy Cargo Truck

Brand Name : SINOTRUK

Model Number : ZZ1107D3815C1

Certification : CCC

Place of Origin : China

MOQ : 1 unit

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1000 units/month

Delivery Time : 20-30 days

Packaging Details : nude package

Engine : YUNNEI

Horse Power : 116hp

Box Size : 4850x2150x550mm

Thickness : bottom 2.5mm, side 1.2mm

Gearbox : Manual

Tyres : 8.25R16

Fuel type : Diesel

Capacity (load) : 5 ton

Contact Now

HOWO Light Truck 4x2 5 Ton Capacity Light Commercial Duty Truck Blue Color



The HOWO light truck is SINORUK business department designed according to its mature technology, combined with working conditions, absorbing international advanced technology and developed a series of high-end light truck. The first appearance of the total of 12 different configurations of the high-end light truck, can be applied to various working environment.

Various loadding capacity available: 3t, 4t, 5t, 6t, 8t, 10t, 12t, 15t

Engine
Engine model: YN4102QBZL, Euro II emission standard
Clutch
Single-plate diaphragm spring clutch, diameter 300 mm, hydraulically operating
Transmission
WLY transmission, model WLY646, 6 forward & 1 reverse
Ratio: 6.314, 3.913, 2.262, 1.393, 1, 0.788, 5.874 (R)
Front Axle
VGD027QB, forging forming of front axle I-beam, to guarantee the stiffness and high strength.
Rear Axle
HGC055QJ, mature punching welding axle and pressed axle housing
Ratio: 4.63
Chassis
Frame: ladder frame with section of 215×70×6 mm, all cold riveted cross members
Steering
LG9704470020, hydraulic steering with power assistance
Warm Service

1. Factory direct supply: good price, reliable quality and fast delivery.

2. Warranty: one year or 30,000 kilometers, whichever comes first from the date of shipping in B/L.

3. Tracking service: lifelong

4. Chassis question: when the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station;

5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.

6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.

7. Tips:  please operate, use, and maintain the truck according to our manuals and Instructions. When the question occurs, please call us freely.

Specification

 Chassis Model  ZZ1107D3815C1
 Drive Type  4×2
 Engine

 YUNNEI YN4102QBZL, 116hp

 Displacement 3.76L

 Cabin  1880 cabin, with 1 sleeper & A/C
 Transmission  WLY6T46, 6 forward & 1 reverse
 Front Axle  2.7Ton
 Driving Axle  7.2 Ton, ratio 5.833
 Clutch  hydraulically operating with air assistance
 Tyres   8.25R16
 Oil tank  120L
 Wheel base  3800mm
 Dimension of cargo body

 4850x2150*550mm

 bottom 3mm side 1.5mm

 Overall dimension  6995x23300x2650mm
 Curb weight  4725kg
 Gross weight  9890kg
 Max. speed  95km/h
 Color  White, red, green, golden and so on.

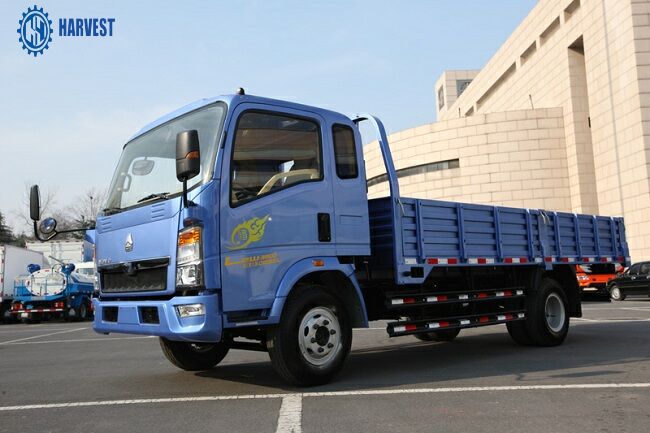

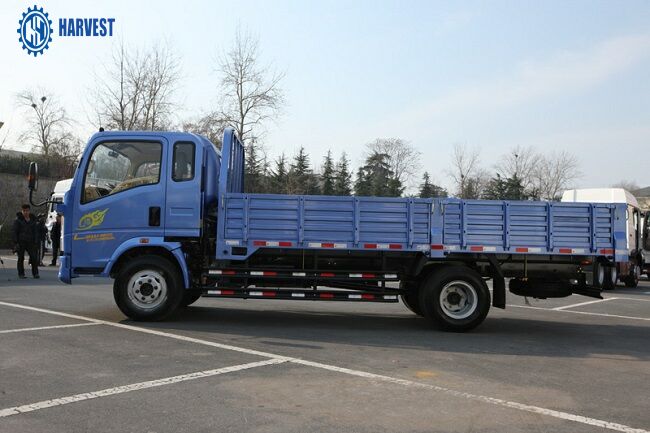

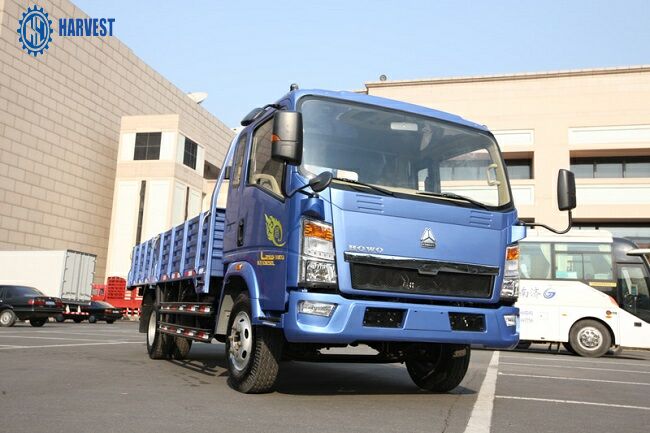

Pictures

5 Ton Heavy Cargo Truck5 Ton Heavy Cargo Truck5 Ton Heavy Cargo Truck5 Ton Heavy Cargo Truck5 Ton Heavy Cargo Truck
